Hydrogen sulphide (H₂S) removal from Biogas
Biogas is produced by the digestion of organic matter in landfills and anaerobic digesters. Hydrogen sulphide (H₂S) is formed during the anaerobic digestion of sulphur-containing molecules, such as sulphur-containing amino acids within proteins.
Hydrogen sulphide (H₂S) needs to be removed before the combustion engine, because there it is converted to SO₂/SO₃ and results in:
- Higher maintenance cost due to corrosion
- A negative effect on the engine oil, meaning it needs to be changed more frequently.
- A contribution to the SO₂/SO₃ emissions of the engine exhaust.
Hydrogen sulphide (H₂S) concentrations can also be too high for feeding to the supply grid. In general, a biomethane quality of >99% methane needs to be achieved to be able to feed to the grid.
BIOGAS: MOBILE FILTER
AddSorb™
Our AddSorb™ product series includes products with superior chemical properties and high adsorption capacity to remove hydrogen sulfide (H2S). Backed by rigorous quality control measures and extensive testing, our AddSorb™ range delivers consistent and reliable performance. By reducing corrosion and damage caused by SO₂/SO₃ forming during combustion, the AddSorb™ range helps prolong the lifespan of your equipment, minimising maintenance costs and downtime.Product Name | Form | Characteristics |
---|---|---|

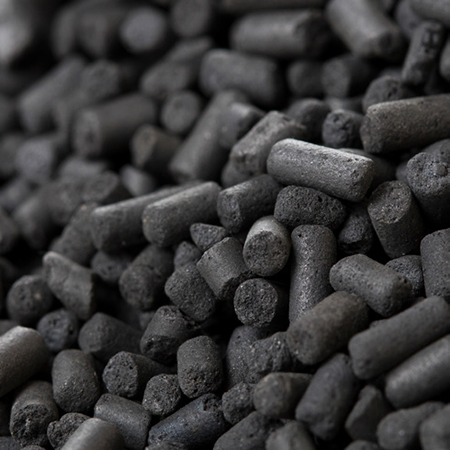

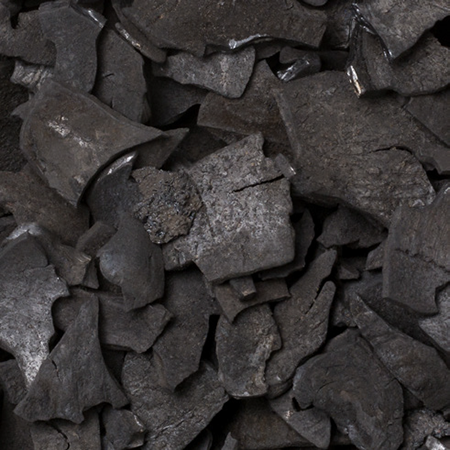

AddSorb™ VA6-BG | Granular / Pellets | Caustic impregnation, O2 required |
AddSorb™ VA12-BG | Granular / Pellets | Halogen salt impregnation, O2 required |
AddSorb™ OX30 | Pellets only | Coconut-based, doped, very high capacity, O2 required |
AddSorb™ VA10 | Pellets only | Caustic impregnation, O2 deficient gas streams |
EcoFlow™
Hydrogen sulphide (H₂S) removal filters from Jacobi’s EcoFlow™ mobile filter range are usually installed before the water condenser in the biogas purification process.
Jacobi has a full range of mobile filters for flow rates between 75 and 4,000 m³/h biogas per filter. Our wide range of rental EcoFlow™ filters are offered via local sales offices, avoiding international transport.
BIOGAS: SOLUTIONS
Auxiliary equipment and additional services
In addition to mobile filters and different media, Jacobi Services also offers various items of auxiliary equipment and additional services for hydrogen sulphide (H₂S) removal from biogas, including:- Selection of the type and number of EcoFlow™ filters. The selection depends on the flowrate and the estimated annual activated carbon consumption.
- A series of removable insulation jackets to prevent condensation of water and to keep the relative humidity within an acceptable range for EcoFlow™ mobile filters.
- The capabilities of the Jacobi France laboratory for externally accredited self-ignition testing of virgin or spent activated carbon.
Recycling and reactivation
Depending on the region and the composition of the spent carbon, different recycling or disposal routes are possible. Impregnated spent activated carbons are currently not recyclable.
